Once created, we are finally ready to use the digital twins to run replay simulations.

The aims can be A LOT, e.g.:

  • you want to simulate the impact of modulating the input data you used for twinning, e.g., reducing the insulin bolus by 30%, and see what happens to glucose control
  • you want to evaluate the performance of a bolus calculator you developed
  • you want to develop a new algorithm for type 1 diabetes management
  • you want to find the best hypotreatment policy able to prevent hypoglycemia
  • you want to test an artificial pancreas algorithm
  • you just want to generate data using random insulin/meal inputs
  • and so on and so forth...

In the following, we present how to use ReplayBG for running replay simulations and we will provide a comprehensive list of its capabilities.

The replay method

Replay simulations in ReplayBG can be performed using the replay method of the ReplayBG object, which is formally defined as:

rbg.replay(data: pd.DataFrame,
   bw: float,
   save_name: str,
   x0: np.ndarray | None = None,
   previous_data_name: str | None  = None,
   twinning_method: str = 'mcmc',
   bolus_source: str = 'data',
   basal_source: str = 'data',
   cho_source: str = 'data',
   meal_generator_handler: Callable = default_meal_generator_handler,
   meal_generator_handler_params: Dict | None = None,
   bolus_calculator_handler: Callable = standard_bolus_calculator_handler,
   bolus_calculator_handler_params: Dict | None = None,
   basal_handler: Callable = default_basal_handler,
   basal_handler_params: Dict | None = None,
   enable_hypotreatments: bool = False,
   hypotreatments_handler: Callable = ada_hypotreatments_handler,
   hypotreatments_handler_params: Dict | None = None,
   enable_correction_boluses: bool = False,
   correction_boluses_handler: Callable = corrects_above_250_handler,
   correction_boluses_handler_params: Dict | None = None,
   save_suffix: str = '',
   save_workspace: bool = False,
   n_replay: int = 1000,
   sensors: list | None = None,
   sensor_cgm: CGM = Vettoretti19CGM,
   snack_absorption=snack_absorption,
   snack_absorption_delay=snack_absorption_delay,
   hypotreatment_absorption=hypotreatment_absorption,
) -> Dict:

Input parameters

  • data: A Pandas dataframe which contains the data to be used by the tool. For more information on data format and requirements see Data Requirements page.
  • bw: A float representing the patient's body weight in kg.
  • save_name: A string used to label, thus identify, each output file and result. This MUST correspond to the save_name string provided to the twin method during twinning.
  • x0, optional, default: None: An np.ndarray, containing the initial model conditions. If None, the model will start to the default steady state.
  • previous_data_name, optional, default: None: A string representing the name of the previous data portion. This is used to correcly "transfer" the initial model conditions to the current portion of data. Practically, this is equal to the save_name used during the creation of the digital twin related to the previous portion of data. It must be set if x0 is not None.
  • twinning_method, optional, {'mcmc', 'map'}, default: 'mcmc': A string used to select the method to be used to twin the model. This MUST correspond to the twinning_method value provided to the twin method during twinning.
  • bolus_source, optional, {'data', 'dss'}, default: 'data': A string defining whether to use, during replay, the insulin bolus data contained in the 'data' dataframe (if 'data'), or the boluses generated by the bolus calculator implemented via the provided 'bolusCalculatorHandler' function.
  • basal_source, optional, {'data', 'u2ss', 'dss'}, default: 'data': A string defining whether to use,
  • during replay, the insulin basal data contained in the 'data' dataframe (if 'data'), or the basal generated by the controller implemented via the provided 'basalControllerHandler' function (if 'dss'), or fixed to the average basal rate used during twinning (if 'u2ss').
  • cho_source, optional, {'data', 'generated'}, default: 'data': A string defining whether to use, during replay, the CHO data contained in the 'data' dataframe (if 'data'), or the CHO generated by the meal generator
  • implemented via the provided 'mealGeneratorHandler' function (if 'generated').
  • meal_generator_handler, optional, default: default_meal_generator_handler: A callback function that implements a meal generator to be used during the replay simulation. For more information see the below Event handlers section.
  • meal_generator_handler_params, optional, default: None: A Python dictionary that contains the parameters to pass to the meal_generator_handler function. It also serves as memory area for the meal_generator_handler function. For more information see the below Event handlers section.
  • bolus_calculator_handler, optional, default : standard_bolus_calculator_handler: A callback function that implements a bolus calculator to be used during the replay simulation. For more information see the below Event handlers section.
  • bolus_calculator_handler_params, optional, default: None: A Python dictionary that contains the parameters to pass to the bolusCalculatorHandler function. It also serves as memory area for the bolusCalculatorHandler function. For more information see the below Event handlers section.
  • basal_handler, optional, default: default_basal_handler: A callback function that implements a basal controller to be used during the replay simulation. For more information see the below Event handlers section.
  • basal_handler_params, optional, default: None: A Python dictionary that contains the parameters to pass to the basalHandler function. It also serves as memory area for the basalHandler function. For more information see the below Event handlers section.
  • enable_hypotreatments, optional, default: False: A boolean that specifies whether to enable hypotreatments during the replay simulation. For more information see the below Event handlers section.
  • hypotreatments_handler, optional, default: ada_hypotreatments_handler: A callback function that implements a hypotreatment strategy during the replay simulation. For more information see the below Event handlers section.
  • hypotreatments_handler_params, optional, default: None: A Python dictionary that contains the parameters to pass to the hypoTreatmentsHandler function. It also serves as memory area for the hypoTreatmentsHandler function. For more information see the below Event handlers section.
  • enable_correction_boluses, optional, default: False: A boolean that specifies whether to enable correction boluses during the replay simulation. For more information see the below Event handlers section.
  • correction_boluses_handler, optional, default: corrects_above_250_handler: A callback function that implements a corrective bolus strategy during the replay simulation. For more information see the below Event handlers section.
  • correction_boluses_handler_params, optional, default: None: A Python dictionary that contains the parameters to pass to the correctionBolusesHandler function. It also serves as memory area for the correctionBolusesHandler function. For more information see the below Event handlers section.
  • save_suffix, optional, default: '': A string to be attached as suffix to the resulting output files' name.
  • save_workspace, optional, default: False: A boolean that specifies whether to save the results of the simulation in the results/workspaces folder or not.
  • n_replay, optional, {1, 10, 100, 1000}, default: 1000: A number to select the sampled form to be used for the replay simulations. Ignored if twinning_method is 'map'.
  • sensors: , optional, default: None: A list[Sensors] to be used in each of the replay simulations. Its length must coincide with the selected n_replay. Used when working with intervals. If None new sensors will be used.
  • sensor_cgm, optional, default: Vettoretti19CGM: The class of the CGM error model to be used during the replay simulation.
  • snack_absorption, optional, default: None: A value to override the identified snack absorption rate.
  • snack_absorption_delay, optional, default: None: A value to override the identified snack absorption delay (between 0 and 60 minutes)
  • hypotreatment_absorption, optional, default: None: A value to override the identified hypotreatment absorption rate.

REMEMBER

The total length of the simulation, simulation_length, is defined in minutes and determined by ReplayBG automatically using the t column of data and the yts input parameter provided to the ReplayBG object builder.

For example, if yts is 5 minutes and t starts from 20-Dec-2013 10:36:00 and ends to 20-Dec-2013 10:46:00, then simulation_length will be 10.

Warning

The replay method will generate an error if the digital twin has not been created first.

Simulation results

The replay method will return the simulation results in the form of a dictionary with the following fields:

  • glucose: a dictionary containing the simulated plasma glucose timeseries (mg/dl). It contains:
    • realizations: a np.ndarray of size (n_replay, simulation_length) containing each n_replay simulated glucose profile
    • median: a np.ndarray of size (simulation_length, ) containing the median simulated glucose profile (obtained from realizations)
    • ci25th: a np.ndarray of size (simulation_length, ) containing the simulated glucose profile corresponding to the 25th percentile (obtained from realizations)
    • ci75th: a np.ndarray of size (simulation_length, ) containing the simulated glucose profile corresponding to the 75th percentile (obtained from realizations)
    • ci5th: a np.ndarray of size (simulation_length, ) containing the simulated glucose profile corresponding to the 5th percentile (obtained from realizations)
    • ci95th: a np.ndarray of size (simulation_length, ) containing the simulated glucose profile corresponding to the 95th percentile (obtained from realizations)
  • cgm: a dictionary containing the simulated CGM timeseries (mg/dl). It contains:
    • realizations: a np.ndarray of size (n_replay, simulation_length/yts) containing each n_replay simulated cgm profile
    • median: a np.ndarray of size (simulation_length/yts, ) containing the median simulated cgm profile (obtained from realizations)
    • ci25th: a np.ndarray of size (simulation_length/yts, ) containing the simulated cgm profile corresponding to the 25th percentile (obtained from realizations)
    • ci75th: a np.ndarray of size (simulation_length/yts, ) containing the simulated cgm profile corresponding to the 75th percentile (obtained from realizations)
    • ci5th: a np.ndarray of size (simulation_length/yts, ) containing the simulated cgm profile corresponding to the 5th percentile (obtained from realizations)
    • ci95th: a np.ndarray of size (simulation_length/yts, ) containing the simulated cgm profile corresponding to the 95th percentile (obtained from realizations)
  • x_end: a dictionary containing the final model conditions (to be used when working with intervals). It contains:
    • realizations: a np.ndarray of size (n_replay, n_model_equations) containing for each n_replay the final state of the model. n_model_equations is different depending on the blueprint.
  • insulin_bolus: a dictionary containing the administered insulin boluses during the replay simulation (U/min). It contains:
    • realizations: a np.ndarray of size (n_replay, simulation_length) containing the n_replay simulated series of administered insulin boluses
  • correction_bolus: a dictionary containing the administered corrective insulin boluses during the replay simulation (U/min). It contains:
    • realizations: a np.ndarray of size (n_replay, simulation_length) containing the n_replay simulated series of administered corrective insulin boluses
  • insulin_basal: a dictionary containing the administered basal insulin during the replay simulation (U/min). It contains:
    • realizations: a np.ndarray of size (n_replay, simulation_length) containing the n_replay simulated series of administered basal insulin
  • cho: a dictionary containing the meal intakes had during the replay simulation (g/min). It contains:
    • realizations: a np.ndarray of size (n_replay, simulation_length) containing the n_replay simulated series of meal intakes
  • hypotreatments: a dictionary containing the hypotreatment intakes had during the replay simulation (g/min). It contains:
    • realizations: a np.ndarray of size (n_replay, simulation_length) containing the n_replay simulated series of hypotreatment intakes
  • meal_announcment: a dictionary containing the announced CHO intakes had during the replay simulation (g). It contains:
    • realizations: a np.ndarray of size (n_replay, simulation_length) containing the n_replay simulated series of announced CHO intakes
  • vo2: a dictionary containing the input exercise VO2 used during the replay simulation (-) (NOT YET IMPLEMENTED). It contains:
    • realizations: a np.ndarray of size (n_replay, simulation_length) containing the n_replay simulated series of exercise VO2
  • sensors: a list of Sensors objects of size (n_replay) (to be used when working with intervals).
  • rbg_data: the given data but in a proprietary ReplayBGData format (to be used for debugging).
  • model: the model used for simulation (to be used for debugging).

Tips

Beside returning the above dictionary, if the save_workspace is set to True, ReplayBG will also save it in a .pkl file using save_name and save_suffix parameters to save it as: results/workspaces/<save_name>_<save_suffix>.pkl.

Replaying single portions of data

To replay single portions of data, i.e., a single meal event or a single day, you can follow this example, which shows how to use a digital twin previously created using the MCMC twinning method (stored in results/mcmc/example.pkl). In this example, we will just simulate a reduction of 20% of the original insulin boluses:

import os

from py_replay_bg.py_replay_bg import ReplayBG


# Set verbosity
verbose = True
plot_mode = False

# Set other parameters for twinning
blueprint = 'multi-meal'
save_folder = os.path.join(os.path.abspath(''))

# Set bw
bw = ... # Set bw

# Instantiate ReplayBG
rbg = ReplayBG(blueprint=blueprint, save_folder=save_folder,
               yts=5, exercise=False,
               seed=1,
               verbose=verbose, plot_mode=plot_mode)

# Load data and set save_name
data = ...
save_name = 'example'

# Reduce the original boluses by 20%
data.bolus = data.bolus * 0.8

# Replay the twin using the modified data
replay_results = rbg.replay(data=data, bw=bw, save_name=save_name,
                            n_replay=10,
                            twinning_method='mcmc',
                            save_workspace=True,
                            save_suffix='reduced')

The results will be saved in <save_folder>/results/workspaces/example_reduced.pkl.

A fully working example can be found in example/code/replay_mcmc.py.

Tips

To do the same but using a digital twin created with the MAP twinning method, just set twinning_method to 'map'. A full example can be found in example/code/replay_map.py.

Replaying portions of data spanning more than one day (i.e., intervals)

To replay portions of data than span multiple days, i.e., an intervals, you need to practically do the following steps:

  1. initialize empty initial conditions, i.e., x0, previous_data_name, sensors.
  2. replay the first day
  3. extract from the results x0, previous_data_name, sensors to be used for the next day
  4. replay the subsequent day 5repeat steps 3 and 4, for each subsequent day of the interval.

To implement these steps you can follow this example, which shows how to replay an interval spanning two days using two digital twins previously created using the MCMC twinning method (stored in results/mcmc/example_1.pkl and results/mcmc/example_2.pkl). In this example, we will just simulate the original insulin boluses:

import os

from py_replay_bg.py_replay_bg import ReplayBG

# Set verbosity
verbose = True
plot_mode = False

# Set other parameters for twinning
blueprint = 'multi-meal'
save_folder = os.path.join(os.path.abspath(''))

# Set bw
bw = ...

x0 = None
previous_data_name = None
sensors = None

# Initialize the list of results
replay_results_interval = []
data_interval = []

# Instantiate ReplayBG
rbg = ReplayBG(blueprint=blueprint, save_folder=save_folder,
               yts=5, exercise=False,
               seed=1,
               verbose=verbose, plot_mode=plot_mode)

# Set interval to twin
start_day = 1
end_day = 2

# Twin the interval
for day in range(start_day, end_day+1):

    # Load data and set save_name
    data = ...
    save_name = 'example' + str(day)

    # Replay the twin with the same input data
    replay_results = rbg.replay(data=data, bw=bw, save_name=save_name,
                                twinning_method='mcmc',
                                n_replay=100,
                                save_workspace=True,
                                x0=x0, previous_data_name=previous_data_name, sensors=sensors,
                                save_suffix='_intervals')

    # Append results
    replay_results_interval.append(replay_results)
    data_interval.append(data)

    # Set initial conditions for next day equal to the "ending conditions" of the current day
    x0 = replay_results['x_end']['realizations'][0].tolist()

    # Set sensors to use the same sensors during the next portion of data
    sensors = replay_results['sensors']

    # Set previous_data_name
    previous_data_name = save_name

The results will be saved in <save_folder>/results/workspaces/example_1_intervals.pkl and <save_folder>/results/workspaces/example_2_intervals.pkl.

A fully working example can be found in example/code/replay_intervals_mcmc.py.

Tips

To do the same but using a digital twin created with the MAP twinning method, just set twinning_method to 'map'. A full example can be found in example/code/replay_intervals_map.py.

Event handlers

The possibility to alter "offline" the original data before calling rbg.replay() alone is not sufficient for testing, for example, a specific bolus calculation strategy, as the meal/insulin inputs usually depend on the current glucose value and other surrounding conditions which cannot be known before simulation.

In this context, the ReplayBG rbg.replay() method can be fed by a set of callable Python functions, hereafter referred to as "handlers", that will handle the real-time generation of specific events during the simulation.

As such, event handlers allow users to decide whether to use the meal/insulin inputs defined offline by the data parameter of rbg.replay() or those generated online, during simulation, by custom algorithms.

Implemented handlers and logic

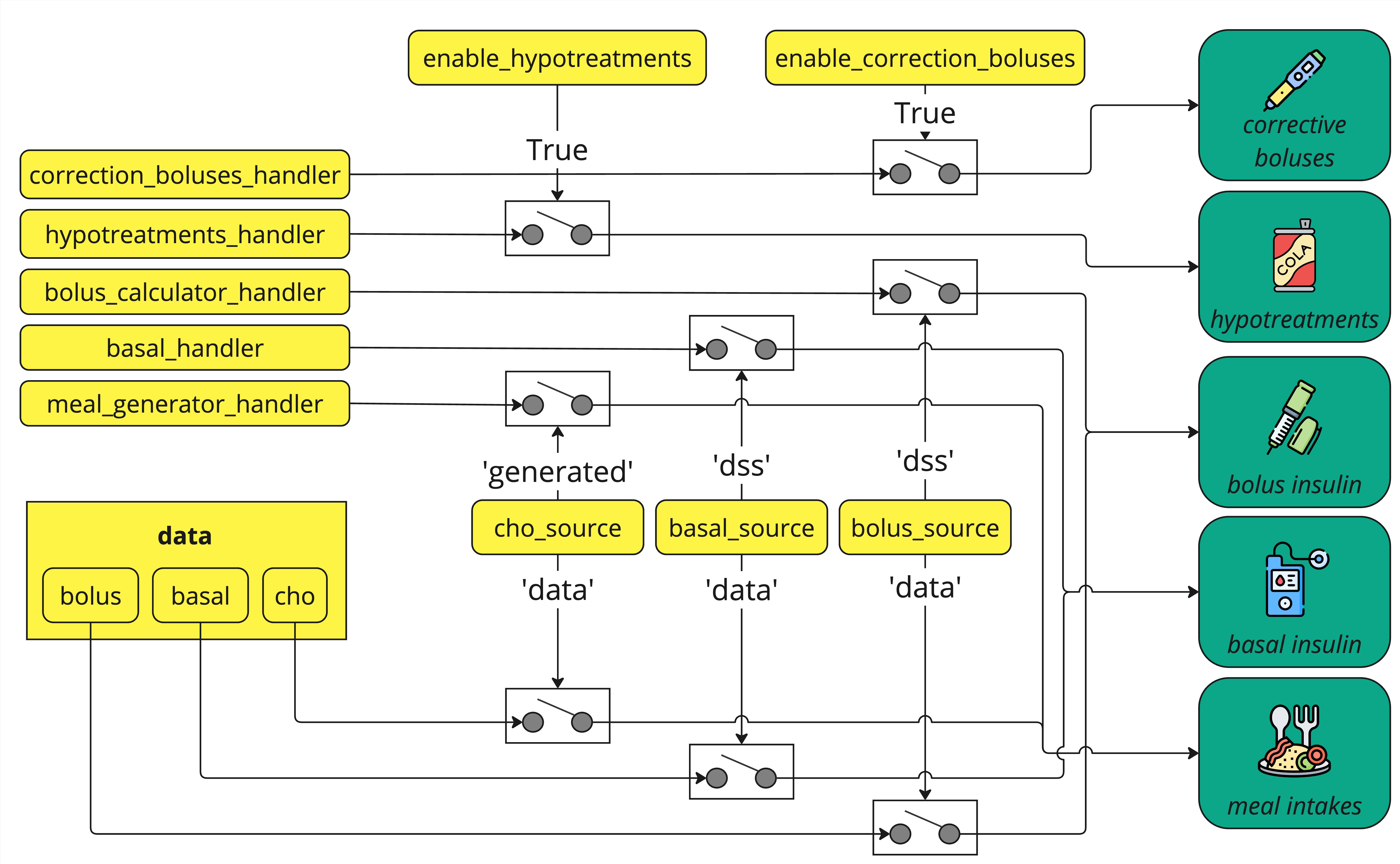

The following scheme defines the logic followed by ReplayBG to decide the input source to use during simulation. Yellow boxes represent input parameters of rbg.replay(), green boxes represent the input data actually used during simulation.

"Input source"

As showed in the figure, five different handlers can be defined:

  • meal_generator_handler: a function that will replace the carbohydrates of data.cho with meal data generated according to a custom user-defined policy when cho_source='generated'.
  • bolus_calculator_handler: a function that will replace the insulin of data.bolus with insulin bolus data generated according to a custom user-defined policy when bolus_source='dss'.
  • basal_handler: a function that will replace the insulin of data.basal with basal insulin data generated according to a custom user-defined policy when basal_source='dss'.
  • correction_boluses_handler: a function that will add correction insulin boluses generated according to a custom user-defined policy when enable_correction_boluses=True.
  • hypotreatments_handler: a function that will add rescue carbs generated according to a custom user-defined policy when enable_hypotreatments=True.

Each handler must comply to mandatory input/output specifications described in details in the following subsections.

Meal generators

A meal generator handler must be a Python function with 4 outputs and 11 inputs defined as:

def <handler_name>(
        glucose: np.ndarray,
        meal: np.ndarray,
        meal_type: np.ndarray,
        meal_announcement: np.ndarray,
        hypotreatments: np.ndarray,
        bolus: np.ndarray,
        basal: np.ndarray,
        time: np.ndarray,
        time_index: int,
        dss: object,
        is_single_meal: bool
        ) -> tuple[float, float, str, object]:

Input parameters

  • glucose: An np.ndarray as long as simulation_length containing all the simulated glucose concentrations (mg/dl) up to time_index. The values after time_index should be ignored by the user.
  • meal: An np.ndarray as long as simulation_length containing all the meals (g) up to time_index. The values after time_index should be ignored.
  • meal_type: An np.ndarray as long as simulation_length containing strings that represent the type of each meal in meal_announcement:
    • If blueprint is single-meal, labels can be:
      • M: main meal
      • O: other meal
    • If blueprint is multi-meal, labels can be:
      • B: breakfast
      • L: lunch
      • D: dinner
      • S: snack
      • H: hypotreatment The values after time_index should be ignored.
  • meal_announcement: An np.ndarray as long as simulation_length containing all the meal announcements (g) up to time_index. The values after time_index should be ignored.
  • hypotreatments: An np.ndarray as long as simulation_length containing all the hypotreatment intakes (g/min) up to time_index. If the blueprint is single meal, hypotreatments will contain only the hypotreatments generated by this function during the simulation. If the blueprint is multi-meal, hypotreatments will ALSO contain the hypotreatments already present in the given data (if cho_source='data') labeled as such. The values after time_index should be ignored.
  • bolus: An np.ndarray as long as simulation_length containing all the insulin boluses (U/min) up to time_index. The values after time_index should be ignored.
  • basal: An np.ndarray as long as simulation_length containing all the insulin basal (U/min) up to time_index. The values after time_index should be ignored.
  • time: An np.ndarray as long as simulation_length containing the time corresponding to the current step (hours) up to time_index. The values after time_index should be ignored.
  • time_index: The index corresponding to the previous simulation step of the replay simulation. This basically represent the progress of the simulation.
  • dss: An object of type DSS. Might contain parameters usable by the handler. More about dss is discussed below in the The dss parameter section.
  • is_single_meal: A boolean flag indicating if the handler is being used by a single meal blueprint or not.

Output parameters

  • c: A float that is the meal amount to have at the next simulation step in (g/min), i.e., time[time_index+1].
  • ma: A float that is the meal announcement (which can be different from c due to carb counting errors) to have at the next simulation step in (g/min), i.e., time[time_index+1].
  • type: A string that is the type of the generated meal. Can be 'M' or 'O' if the blueprint is single meal, 'B' 'L' 'D' or 'S' otherwise.
  • dss: An object of type DSS. Might contain parameters usable by the handler. More about dss is discussed below in the The dss parameter section.

Default handler

The default bolus calculator handler (which is called when no custom handlers are provided by the user and bolus_source='dss') is defined in py_replay_bg.dss.default_dss_handler and implements a super simple generator that is "put a main meal of 50 g of CHO in the first instant and announce only 40g. If is_single_meal=True, the meal type will be 'M', otherwise it will be a breakfast, 'B'":

def default_meal_generator_handler(
        glucose: np.ndarray,
        meal: np.ndarray,
        meal_type: np.ndarray,
        meal_announcement: np.ndarray,
        hypotreatments: np.ndarray,
        bolus: np.ndarray,
        basal: np.ndarray,
        time: np.ndarray,
        time_index: int,
        dss: object,
        is_single_meal: bool
        ) -> tuple[float, float, str, object]:

    # Default output values
    c = 0
    ma = 0
    m_type = ''

    # If this is the first time instant...
    if time_index == 0:

        # ...generate a snack meal of 50 g and announce just 40 g
        c = 50
        ma = 40

        if is_single_meal:
            m_type = 'M'
        else:
            m_type = 'B'

    return c, ma, m_type, dss

Bolus calculators

A bolus calculator handler must be a Python function with 2 outputs and 9 inputs defined as:

def <handler_name>(
        glucose: np.ndarray,
        meal_announcement: np.ndarray,
        meal_type: np.ndarray,
        hypotreatments: np.ndarray,
        bolus: np.ndarray,
        basal: np.ndarray,
        time: np.ndarray,
        time_index: int,
        dss: object
        ) -> tuple[float, object]:

Input parameters

  • glucose: An np.ndarray as long as simulation_length containing all the simulated glucose concentrations (mg/dl) up to time_index. The values after time_index should be ignored by the user.
  • meal_announcement: An np.ndarray as long as simulation_length containing all the meal announcements (g) up to time_index. The values after time_index should be ignored.
  • meal_type: An np.ndarray as long as simulation_length containing strings that represent the type of each meal in meal_announcement:
    • If blueprint is single-meal, labels can be:
      • M: main meal
      • O: other meal
    • If blueprint is multi-meal, labels can be:
      • B: breakfast
      • L: lunch
      • D: dinner
      • S: snack
      • H: hypotreatment The values after time_index should be ignored.
  • hypotreatments: An np.ndarray as long as simulation_length containing all the hypotreatment intakes (g/min) up to time_index. If the blueprint is single meal, hypotreatments will contain only the hypotreatments generated by this function during the simulation. If the blueprint is multi-meal, hypotreatments will ALSO contain the hypotreatments already present in the given data (if cho_source='data') labeled as such. The values after time_index should be ignored.
  • bolus: An np.ndarray as long as simulation_length containing all the insulin boluses (U/min) up to time_index. The values after time_index should be ignored.
  • basal: An np.ndarray as long as simulation_length containing all the insulin basal (U/min) up to time_index. The values after time_index should be ignored.
  • time: An np.ndarray as long as simulation_length containing the time corresponding to the current step (hours) up to time_index. The values after time_index should be ignored.
  • time_index: The index corresponding to the previous simulation step of the replay simulation. This basically represent the progress of the simulation.
  • dss: An object of type DSS. Might contain parameters usable by the handler. More about dss is discussed below in the The dss parameter section.

Output parameters

  • b: A float that is the bolus insulin to administer at the next simulation step in (U/min), i.e., time[time_index+1].
  • dss: An object of type DSS. Might contain parameters usable by the handler. More about dss is discussed below in the The dss parameter section.

Default handler

The default bolus calculator handler (which is called when no custom handlers are provided by the user and bolus_source='dss') is defined in py_replay_bg.dss.default_dss_handler and implements the standard bolus calculator formula B=CHO/CR+(GC−GT)/CF−IOB:

def standard_bolus_calculator_handler(
        glucose: np.ndarray,
        meal_announcement: np.ndarray,
        meal_type: np.ndarray,
        hypotreatments: np.ndarray,
        bolus: np.ndarray,
        basal: np.ndarray,
        time: np.ndarray,
        time_index: int,
        dss: object
        ) -> tuple[float, object]:

    b = 0

    # If a meal is announced...
    if meal_announcement[time_index] > 0:

        # compute iob
        ts = 5

        k1 = 0.0173
        k2 = 0.0116
        k3 = 6.73

        iob_6h_curve = np.zeros(shape=(360,))

        for t in range(0, 360):
            iob_6h_curve[t] = 1 - 0.75 * ((- k3 / (k2 * (k1 - k2)) * (np.exp(-k2 * t / 0.75) - 1) + k3 / (
                        k1 * (k1 - k2)) * (np.exp(-k1 * t / 0.75) - 1)) / 2.4947e4)
        iob_6h_curve = iob_6h_curve[ts::ts]

        iob = np.convolve(bolus, iob_6h_curve)
        iob = iob[bolus.shape[0] - 1]

        # get params
        cr = dss.bolus_calculator_handler_params['cr'] if 'cr' in dss.bolus_calculator_handler_params else 10
        cf = dss.bolus_calculator_handler_params['cf'] if 'cf' in dss.bolus_calculator_handler_params else 40
        gt = dss.bolus_calculator_handler_params['gt'] if 'gt' in dss.bolus_calculator_handler_params else 120

        # ...give a bolus
        b = np.max([0, meal_announcement[time_index] / cr + (glucose[time_index] - gt) / cf - iob])

    return b, dss

Basal controllers

A basal controller handler must be a Python function with 2 outputs and 9 inputs defined as:

def <handler_name>(
        glucose: np.ndarray,
        meal_announcement: np.ndarray,
        meal_type: np.ndarray,
        hypotreatments: np.ndarray,
        bolus: np.ndarray,
        basal: np.ndarray,
        time: np.ndarray,
        time_index: int,
        dss: object
        ) -> tuple[float, object]:

Input parameters

  • glucose: An np.ndarray as long as simulation_length containing all the simulated glucose concentrations (mg/dl) up to time_index. The values after time_index should be ignored by the user.
  • meal_announcement: An np.ndarray as long as simulation_length containing all the meal announcements (g) up to time_index. The values after time_index should be ignored.
  • meal_type: An np.ndarray as long as simulation_length containing strings that represent the type of each meal in meal_announcement:
    • If blueprint is single-meal, labels can be:
      • M: main meal
      • O: other meal
    • If blueprint is multi-meal, labels can be:
      • B: breakfast
      • L: lunch
      • D: dinner
      • S: snack
      • H: hypotreatment The values after time_index should be ignored.
  • hypotreatments: An np.ndarray as long as simulation_length containing all the hypotreatment intakes (g/min) up to time_index. If the blueprint is single meal, hypotreatments will contain only the hypotreatments generated by this function during the simulation. If the blueprint is multi-meal, hypotreatments will ALSO contain the hypotreatments already present in the given data (if cho_source='data') labeled as such. The values after time_index should be ignored.
  • bolus: An np.ndarray as long as simulation_length containing all the insulin boluses (U/min) up to time_index. The values after time_index should be ignored.
  • basal: An np.ndarray as long as simulation_length containing all the insulin basal (U/min) up to time_index. The values after time_index should be ignored.
  • time: An np.ndarray as long as simulation_length containing the time corresponding to the current step (hours) up to time_index. The values after time_index should be ignored.
  • time_index: The index corresponding to the previous simulation step of the replay simulation. This basically represent the progress of the simulation.
  • dss: An object of type DSS. Might contain parameters usable by the handler. More about dss is discussed below in the The dss parameter section.

Output parameters

  • b: A float that is the basal insulin to administer at the next simulation step in (U/min), i.e., time[time_index+1].
  • dss: An object of type DSS. Might contain parameters usable by the handler. More about dss is discussed below in the The dss parameter section.

Default handler

The default basal controler handler (which is called when no custom handlers are provided by the user and basal_source='dss') is defined in py_replay_bg.dss.default_dss_handler and implements a naive algorithm, that is "if glucose < 70, basal = 0; otherwise, basal = 0.01 U/min"

def default_basal_handler(
        glucose: np.ndarray,
        meal_announcement: np.ndarray,
        meal_type: np.ndarray,
        hypotreatments: np.ndarray,
        bolus: np.ndarray,
        basal: np.ndarray,
        time: np.ndarray,
        time_index: int,
        dss: object
        ) -> tuple[float, object]:

    b = 0.01

    # If G < 70...
    if glucose[time_index] < 70:
        # ...set basal rate to 0
        b = 0

    return b, dss

Corrective insulin bolus generators

A corrective insulin bolus generator handler must be a Python function with 2 outputs and 9 inputs defined as:

def <handler_name>(
        glucose: np.ndarray,
        meal_announcement: np.ndarray,
        meal_type: np.ndarray,
        hypotreatments: np.ndarray,
        bolus: np.ndarray,
        basal: np.ndarray,
        time: np.ndarray,
        time_index: int,
        dss: object
        ) -> tuple[float, object]:

Input parameters

  • glucose: An np.ndarray as long as simulation_length containing all the simulated glucose concentrations (mg/dl) up to time_index. The values after time_index should be ignored by the user.
  • meal_announcement: An np.ndarray as long as simulation_length containing all the meal announcements (g) up to time_index. The values after time_index should be ignored.
  • meal_type: An np.ndarray as long as simulation_length containing strings that represent the type of each meal in meal_announcement:
    • If blueprint is single-meal, labels can be:
      • M: main meal
      • O: other meal
    • If blueprint is multi-meal, labels can be:
      • B: breakfast
      • L: lunch
      • D: dinner
      • S: snack
      • H: hypotreatment The values after time_index should be ignored.
  • hypotreatments: An np.ndarray as long as simulation_length containing all the hypotreatment intakes (g/min) up to time_index. If the blueprint is single meal, hypotreatments will contain only the hypotreatments generated by this function during the simulation. If the blueprint is multi-meal, hypotreatments will ALSO contain the hypotreatments already present in the given data (if cho_source='data') labeled as such. The values after time_index should be ignored.
  • bolus: An np.ndarray as long as simulation_length containing all the insulin boluses (U/min) up to time_index. The values after time_index should be ignored.
  • basal: An np.ndarray as long as simulation_length containing all the insulin basal (U/min) up to time_index. The values after time_index should be ignored.
  • time: An np.ndarray as long as simulation_length containing the time corresponding to the current step (hours) up to time_index. The values after time_index should be ignored.
  • time_index: The index corresponding to the previous simulation step of the replay simulation. This basically represent the progress of the simulation.
  • dss: An object of type DSS. Might contain parameters usable by the handler. More about dss is discussed below in the The dss parameter section.

Output parameters

  • cb: A float that is the correction bolus to administer at the next simulation step in (U/min), i.e., time[time_index+1].
  • dss: An object of type DSS. Might contain parameters usable by the handler. More about dss is discussed below in the The dss parameter section.

Default handler

The default corrective insulin bolus generator handler (which is called when no custom handlers are provided by the user and enable_correction_boluses=True) is defined in py_replay_bg.dss.default_dss_handler and implements a naive algorithm, that is "take a correction bolus of 1 U every 1 hour while above 250 mg/dl"

def corrects_above_250_handler(
        glucose: np.ndarray,
        meal_announcement: np.ndarray,
        meal_type: np.ndarray,
        hypotreatments: np.ndarray,
        bolus: np.ndarray,
        basal: np.ndarray,
        time: np.ndarray,
        time_index: int,
        dss: object
        ) -> tuple[float, object]:

    cb = 0

    # If glucose is higher than 250...
    if glucose[time_index] > 250:

        # ...and if there are no boluses in the last 60 minutes, then take a CB
        if time_index >= 60 and not np.any(bolus[(time_index - 60):time_index]):
            cb = 1

    return cb, dss

Hypotreatment generators

A hypotreatment generator handler must be a Python function with 2 outputs and 9 inputs defined as:

def <handler_name>(
        glucose: np.ndarray,
        meal_announcement: np.ndarray,
        meal_type: np.ndarray,
        hypotreatments: np.ndarray,
        bolus: np.ndarray,
        basal: np.ndarray,
        time: np.ndarray,
        time_index: int,
        dss: object
        ) -> tuple[float, object]:

Input parameters

  • glucose: An np.ndarray as long as simulation_length containing all the simulated glucose concentrations (mg/dl) up to time_index. The values after time_index should be ignored by the user.
  • meal_announcement: An np.ndarray as long as simulation_length containing all the meal announcements (g) up to time_index. The values after time_index should be ignored.
  • meal_type: An np.ndarray as long as simulation_length containing strings that represent the type of each meal in meal_announcement:
    • If blueprint is single-meal, labels can be:
      • M: main meal
      • O: other meal
    • If blueprint is multi-meal, labels can be:
      • B: breakfast
      • L: lunch
      • D: dinner
      • S: snack
      • H: hypotreatment The values after time_index should be ignored.
  • hypotreatments: An np.ndarray as long as simulation_length containing all the hypotreatment intakes (g/min) up to time_index. If the blueprint is single meal, hypotreatments will contain only the hypotreatments generated by this function during the simulation. If the blueprint is multi-meal, hypotreatments will ALSO contain the hypotreatments already present in the given data (if cho_source='data') labeled as such. The values after time_index should be ignored.
  • bolus: An np.ndarray as long as simulation_length containing all the insulin boluses (U/min) up to time_index. The values after time_index should be ignored.
  • basal: An np.ndarray as long as simulation_length containing all the insulin basal (U/min) up to time_index. The values after time_index should be ignored.
  • time: An np.ndarray as long as simulation_length containing the time corresponding to the current step (hours) up to time_index. The values after time_index should be ignored.
  • time_index: The index corresponding to the previous simulation step of the replay simulation. This basically represent the progress of the simulation.
  • dss: An object of type DSS. Might contain parameters usable by the handler. More about dss is discussed below in the The dss parameter section.

Output parameters

  • ht: A float that is the hypotreatment to administer at the next simulation step in (g), i.e., time[time_index+1].
  • dss: An object of type DSS. Might contain parameters usable by the handler. More about dss is discussed below in the The dss parameter section.

Default handler

The default hypotreatment generator handler (which is called when no custom handlers are provided by the user and enable_hypotreatments=True) is defined in py_replay_bg.dss.default_dss_handler and implements the ADA guidelines for hypotreatments generation that are ""take a hypotreatment of 10 g every 15 minutes while in hypoglycemia"

def ada_hypotreatments_handler(
        glucose: np.ndarray,
        meal_announcement: np.ndarray,
        meal_type: np.ndarray,
        hypotreatments: np.ndarray,
        bolus: np.ndarray,
        basal: np.ndarray,
        time: np.ndarray,
        time_index: int,
        dss: object
        ) -> tuple[float, object]:

    ht = 0

    # If glucose is lower than 70...
    if glucose[time_index] < 70:

        # ...and if there are no CHO intakes in the last 15 minutes, then take an HT
        if time_index >= 15 and not np.any(hypotreatments[(time_index - 15):time_index]):
            ht = 15

    return ht, dss

The dss parameter

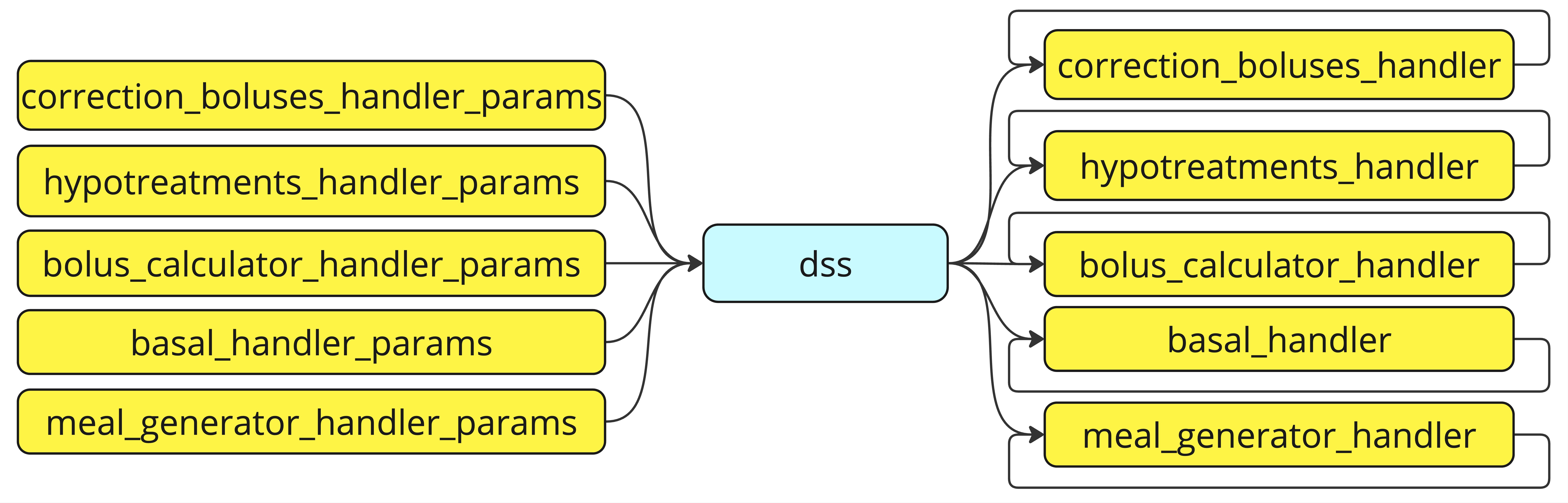

"dss variable flow"

Each of the handler has the dss parameter as input/output.

dss is an object of type DSS, created within the rbg.replay() method, that, as schematized in figure above, has two main goals:

  1. it acts as a container of any hyperparameter and/or data one wants to pass to the custom handler functions.
  2. it serves as memory area

Regarding the first point, the dss objects will contain the correction_boluses_handler_params, hypotreatments_handler_params, bolus_calculator_handler_params, basal_handler_params, and meal_generator_handler_params dictionaries given in input to rbg.replay(). As such, if one needs to pass specific parameters to the custom handler, he/she should provide them in the dictionaries as subsequently access them as dss.correction_boluses_handler_params, dss.hypotreatments_handler_params, dss.bolus_calculator_handler_params, dss.basal_handler_params, and dss.meal_generator_handler_params, respectively.

Regarding the second point, being dictionaries mutable in Python, if needed it is possible to store values inside such parameters of dss so that the handler will be able to access to them in the next call of the function.

Edit this page
Last update: 10/10/2025, 12:22:26 PM
Contributors: Luca,Giacomo Cappon
